PC7511FT

Specification

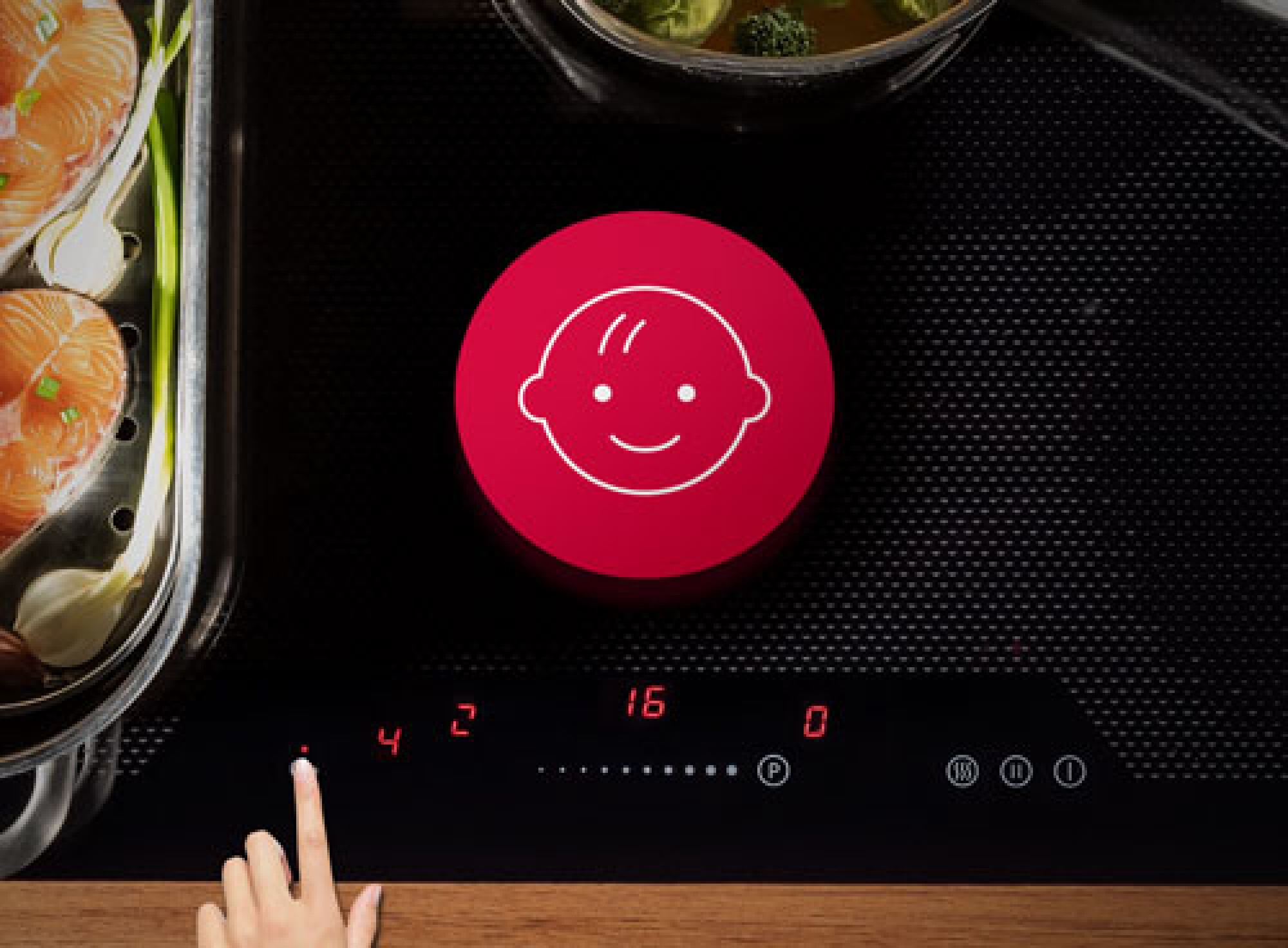

Rapid preheating Yes	ChildLock Yes	Hob finish Edge bevelled
Front left heating zone dimension (cm) 12/17.5/21	Left front zone energy consumption FL 193.5 Wh/kg	Front left heating zone power rating (kW) 0.8/1.6/2.3
Rear left heating zone dimension (cm) 14.5	Left rear zone energy consumption RL 193.5 Wh/kg	Rear left heating zone power rating (kW) 1.2
Middle zone energy consumption MID 193.5 Wh/kg	Middle heating zone power rating (kW) 1.4/2.2	Number of power levels 9
Residual heat indicator Yes	Front right heating zone dimension (cm) 14.5	Right front zone energy consumption FR 193.5 Wh/kg
Front right heating zone power rating (kW) 1.2	Rear right heating zone dimension (cm) 18	Right rear zone energy consumption RR 193.5 Wh/kg	Rear right heating zone power rating (kW) 1.8	Temperature limiter Yes	Timer Yes
Hob energy consumption 193.5 Wh/kg	Control type Separate plus minus control panels

Power indicator lamp Yes

Frequency 50	Connection type 3N~230/400 V	Country of Origin on Rating Label no_data_PDM
Cut out size - depth 49 cm	Cut out size - width 75 cm	Display color Red
Quick-heating zone - roaster 17 / 17x26.5 cm (1.4 / 2.2 kW) 1	Edge finish Bevelled	Gross volume 0.086 m³
Total power of hob 8.7 kW	In-furniture depth 4.2 cm	Net depth 52.2 cm
Net height 4.8 cm	Net weight 11.05 kg	Net width 78 cm
Number of heating elements 5	Position of connection cable inlet Left - rear	Position Of Connection Cable Left Rear
Power Supply Voltage 230V / 400V	Single quick-heating zone 14.5 cm (1.2 kW) 2	Single heating zone 18.0 cm (1.5 kW) 1
Triple quick heat zone 12 / 17.5 / 21 cm (0.8 / 1.6 / 2.3 kW) 1	Hob type Ceramic
